Postwar American Television
DuMont RA-101 "Custom"
(click on picture for high resolution image)
(1946 - 20 inch)
This set was made in 1946 for installation in the wall of a living room, bar or club. At the top is the AM/SW radio and TV tuner. Below is the power supply chassis, and at the bottom is the high voltage power supply and sweep chassis. Here are a picture of this set installed, DuMont RA-101 brochure, , and a 1946 DuMont booklet. Here is a biography of Allen DuMont, whose company built this and many other pre-1945 and early postwar sets.

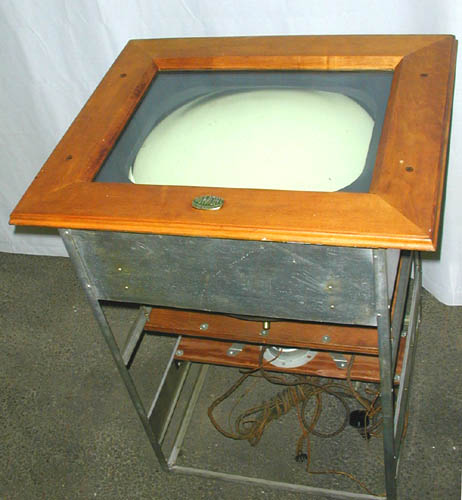

The picture tube assembly contains a 20BP4, and was mounted horizontally

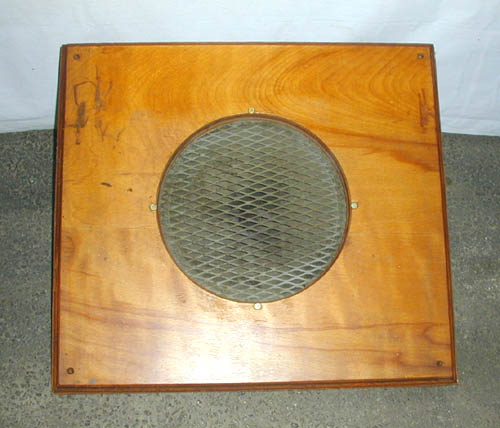

A 15 inch speaker is in this panel
Dealer Display Card
