Snaider model P-520 ("Auditorium")



(click on picture for high resolution image)

(1947 - 5 inch projection tube)

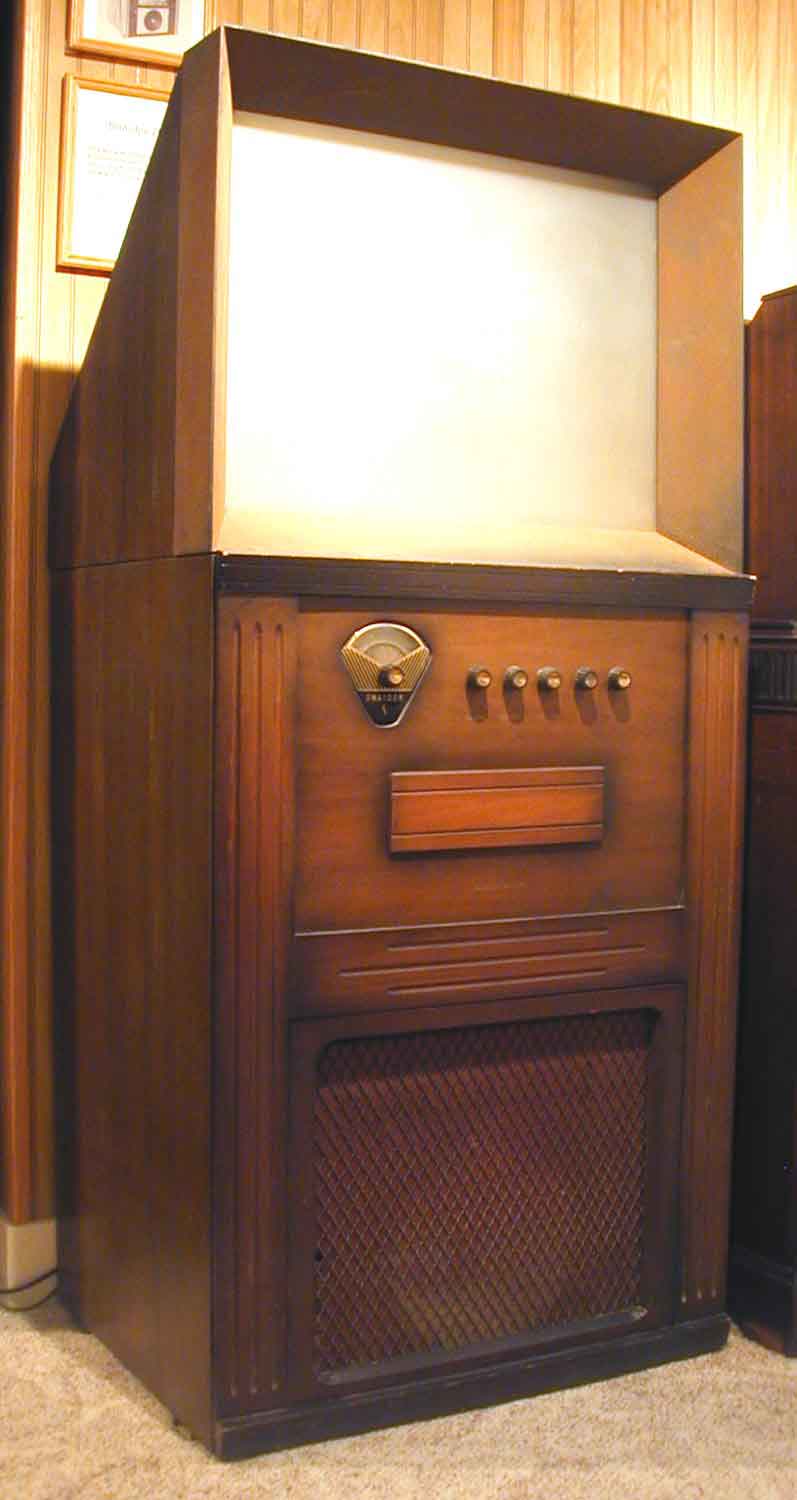

This set was made in 1947 to be installed in the wall of a house or in a separate, metal cabinet. It is a projection set, and is almost 6 feet tall.  The set is a kit, made by Television Assembly Company of New York. We have the complete assembly manual for the set. We have started restoration of this set. Click for an advertisement and brochure for this set, or for a 1949 article.

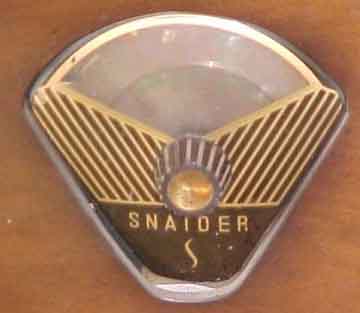

The tuning dial, with channel 1 and FM

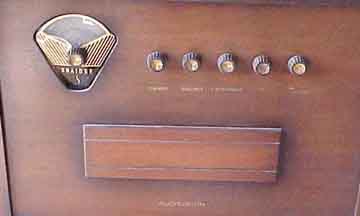

The front panel

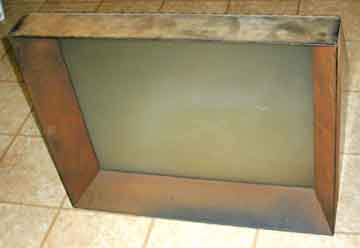

The mirror/screen assembly, made of sheet metal.

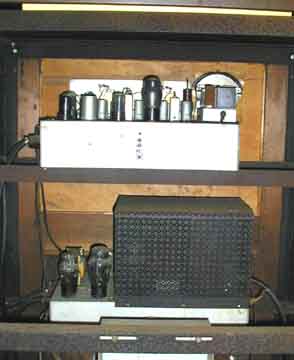

The TV/FM Radio Receiver Chassis (top) and the Sweep Chassis (bottom)

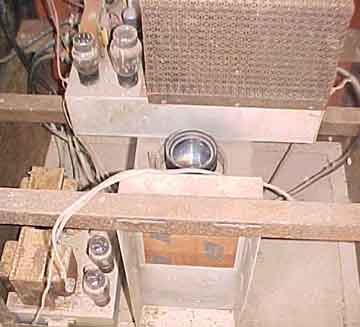

The projection lens (center), the Power Supply Chassis (bottom left), and the Sweep Chassis ( top).



The TV/FM Radio Receiver Chassis.
