Early Color Television
(click on picture for high resolution image)

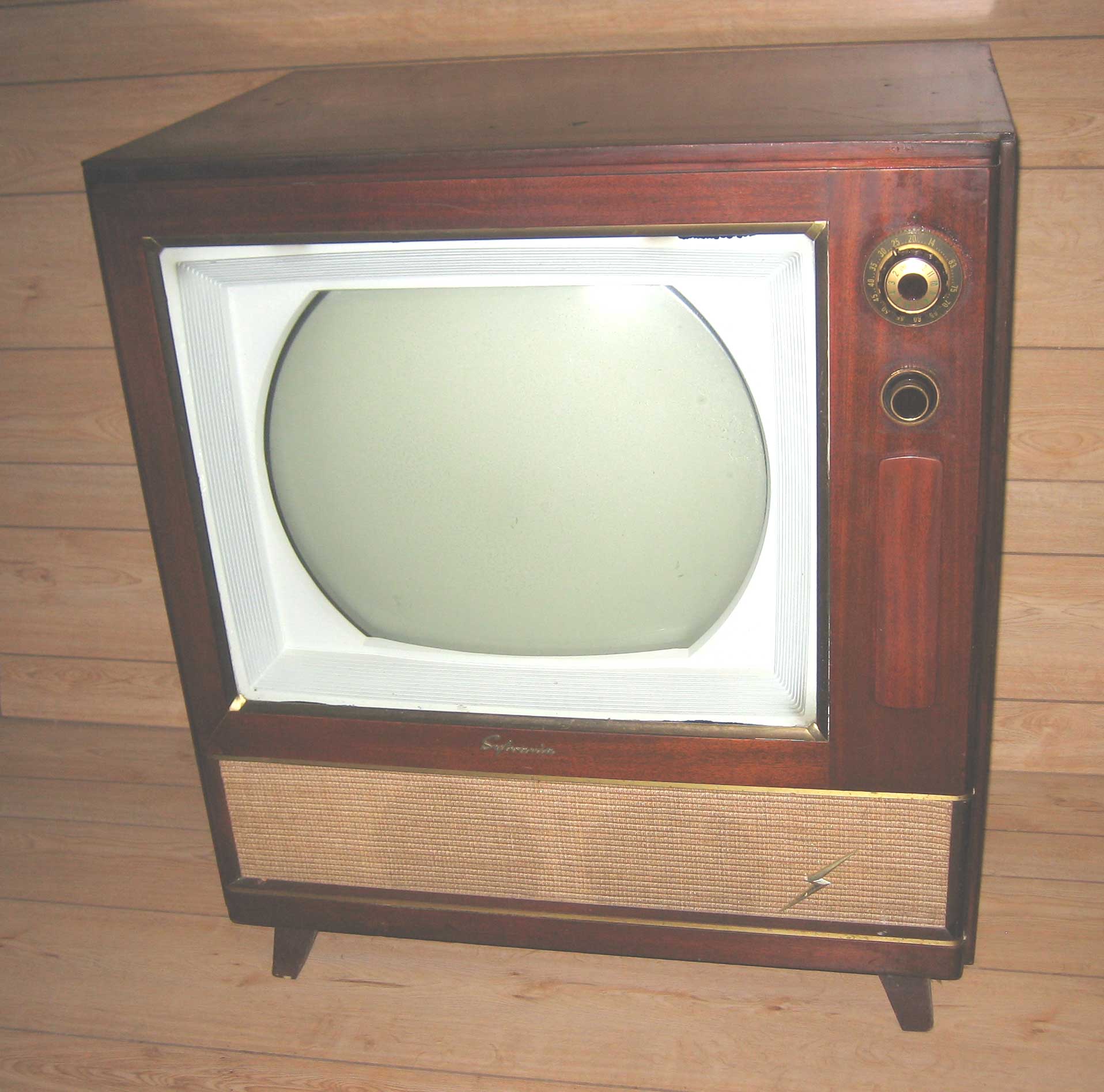

This set uses the RCA CTC-4 chassis. It is the only one known to exist today, and must have been made in very small quantities. Hallicrafters, Magnavox, DuMont and Stromberg-Carlson also used the CTC-4 chassis in their early 21 inch models. Here is the schematic diagram.
(click on pictures for high resolution images)

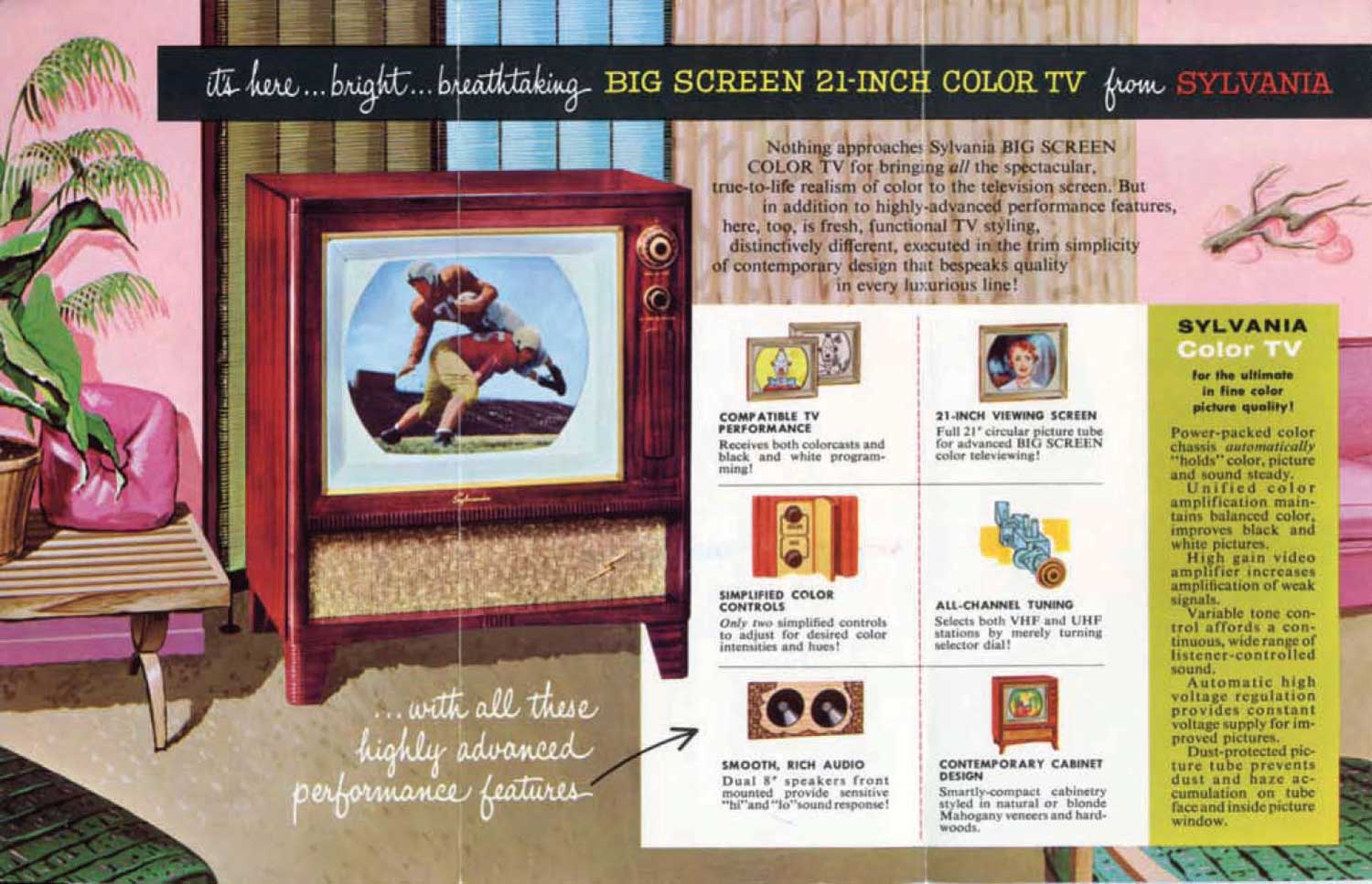

Brochure courtesy of Wayne Bretl
