Early Electronic Television

General Electric HM-171 #2 Chassis

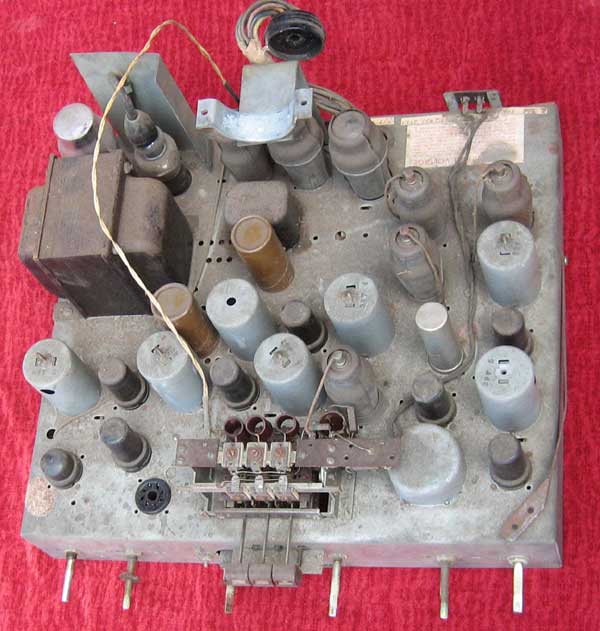

The chassis before restoration. Notice the cable crossing the power transformer. That was added for the speaker. On the right side you can see a bracket that was added to hold the speaker.



The two added tubes

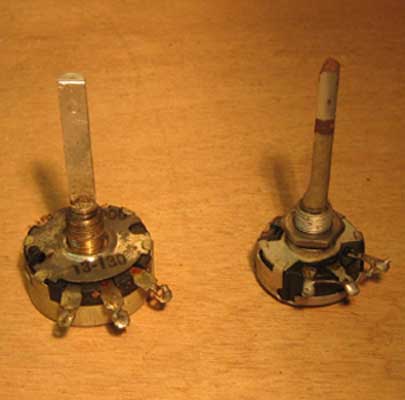

The added tone and volume controls

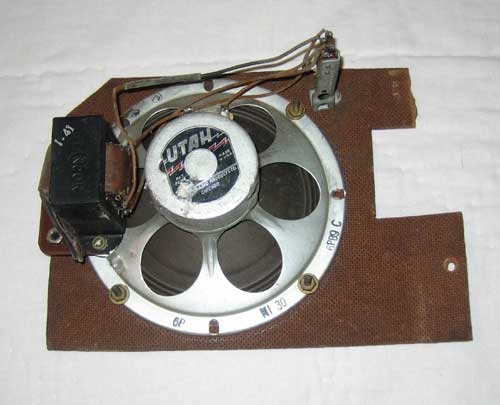

The speaker

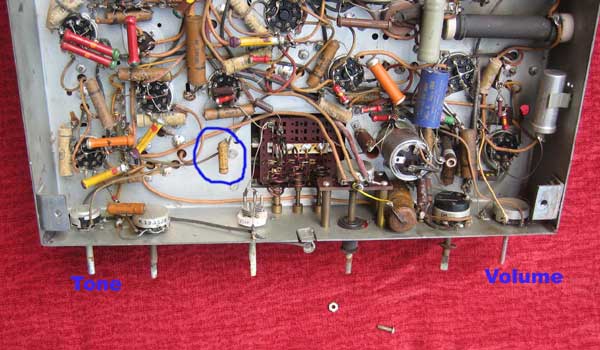

The added controls, plus a capacitor and terminal strip added for the tone circuit

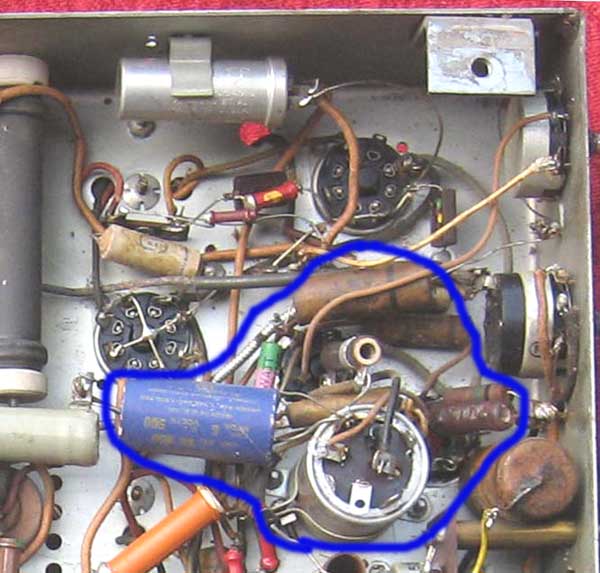

The components in the blue area were added for the audio output

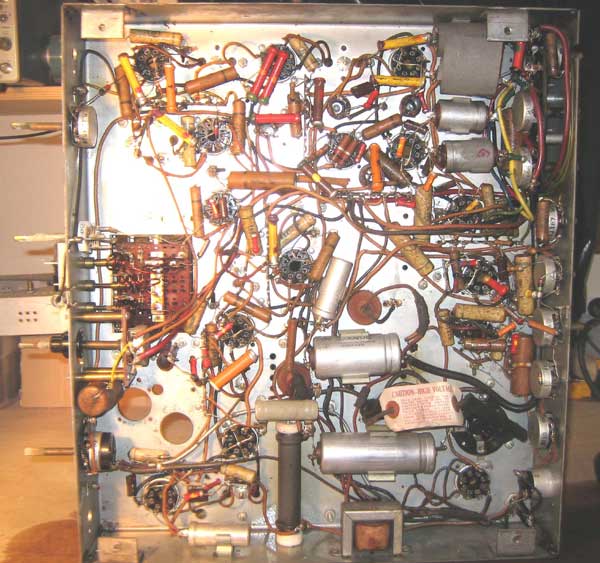

The underside of the chassis after it has been returned to the original design



The chassis after cleaning, ready for restoration
