Postwar American Television
(1948 - 4 inch projection tube)

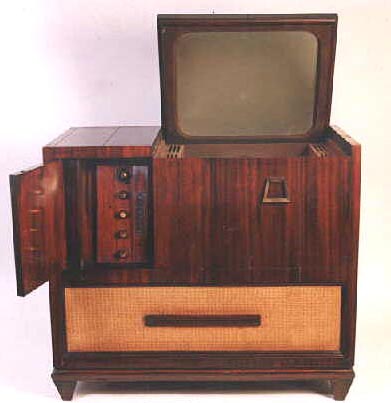

Philco's only projection set. Unlike all the other projection sets of the time, it used a custom-designed 4 inch CRT.

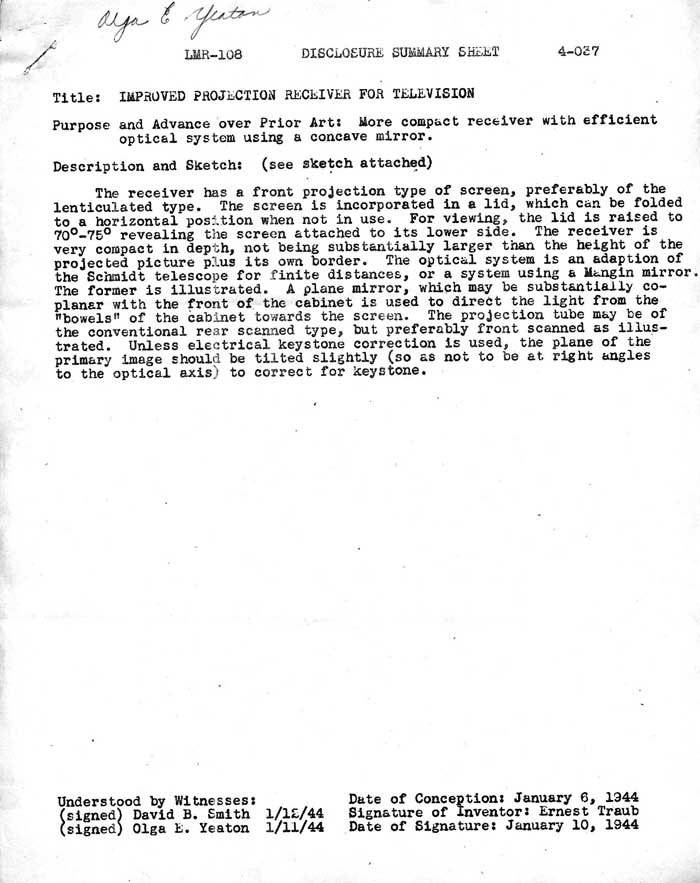

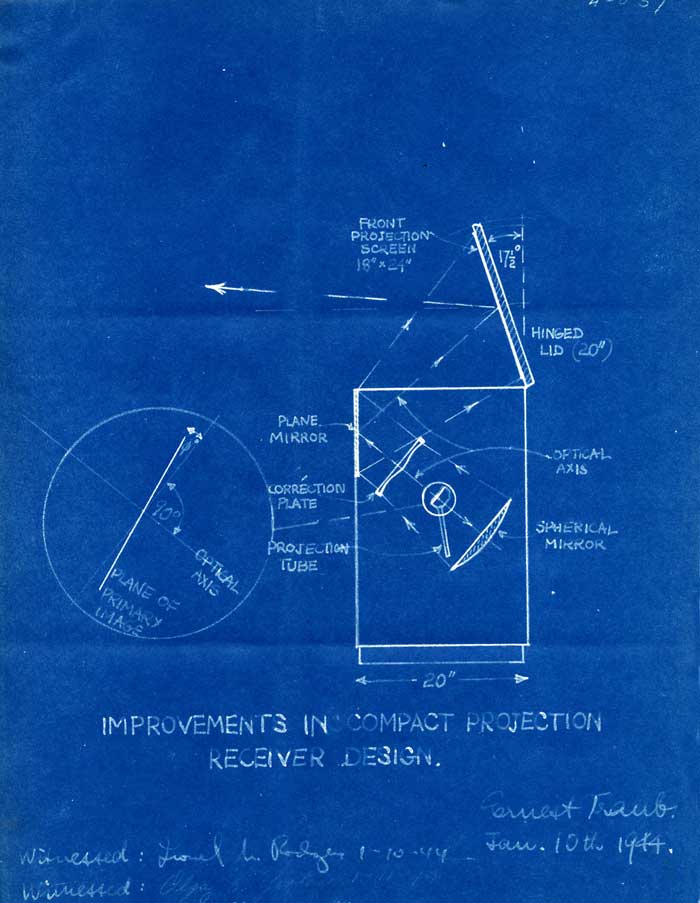

This disclosure, dated January 1944, may be for the optics systems used in the 48-2500:
Courtesy of Chuck Azzalina
